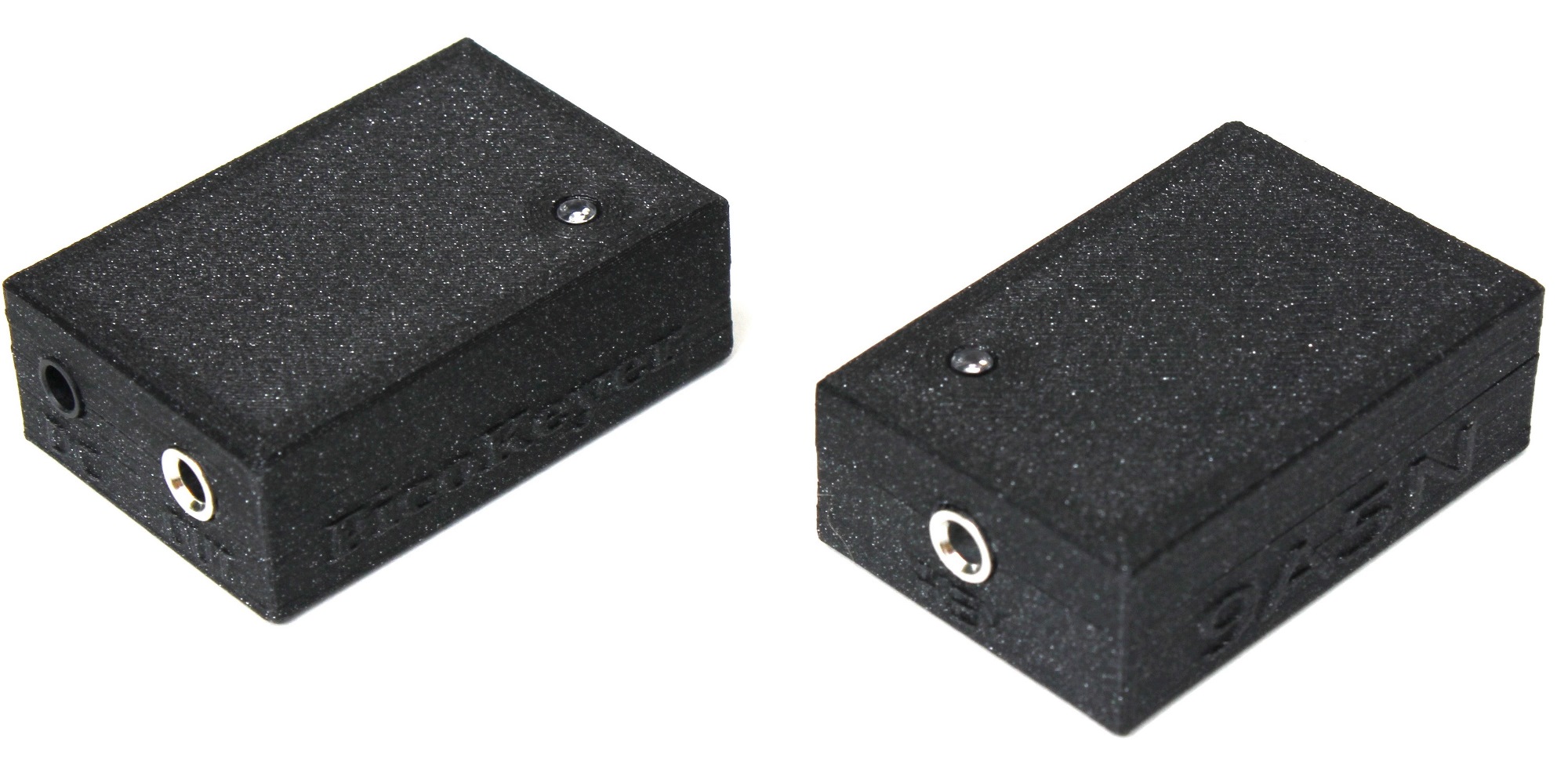

9A5N PicoKeyer

The 9A5N PicoKeyer is the "little brother" of the QRQ Keyer.

PicoKeyer is primarily developed for use in field CW operation, however, can be used at home like PC - transceiver CW interface also.

PicoKeyer does not have its own side tone and uses the side tone of the connected radio station. All CW parameters are adjusted and changed with Bluetooth commands. To easily set up and change PicoKeyer parameters, you can use a specially developed free application "9A5N Keyer BT Companion" for Android mobile devices available on Google Play (soon on App Store also).

PicoKeyer connected via Bluetooth with a smartphone / tablet with "Pocket QSO Logger" application installed, enables field CW operation paddleless. Pocket QSO Logger is free Android application available on Google Play (soon on App Store also).

Field operation without CW paddle is much easier:

-       No need for an expensive and sensitive CW paddle

-       No need for a stable base and space for the paddle

-       The paddle is not exposed to outdoor conditions

-       The paddle is not exposed to potential mechanical damage

Pocket QSO logger works like contest loggers (keying the entered call sign and report, macro messages and messages written with the keyboard) and the CW paddle is unnecessary.

The aforementioned features make the 9A5N PicoKeyer completely different from other keyers on the global market.

PicoKeyer Specification

-       Bluetooth module for wireless connection with a PC and mobile devices

-       Iambic A/B, Ultimatic, Bug and Straight Key mode

-       Adjustable keying speed from 5 to 99 WPM

-       Auto spacing function

-       Serial port input buffer with a capacity of 410 characters

-       CW decoder for correct keying control

-       Compatibility with WinKeyer 3.1 protocol

-       Built-in magnets for easy attachment to the radio station steel housing

-       3D printed PLA housing in Galaxy black color

-       CW output with MOSFET transistor 60V/500mA

-       Power supply: 5 - 15V DC / 22 mA max.



            Dimensions: 46 x 31 x 16 mm

            Weight: 16 g



  Price – 40 €
